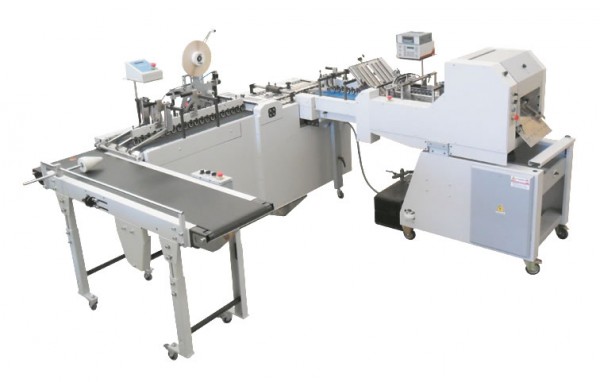

Envelope making machine | Rialto

The Rialto envelope making machine is a light envelope (70g – 120g paper), folding and gluing machine, is designed to produce office envelopes previously die cut or ram punched. One operator feeds the machine and also packs the finished products.

This machine is one of our most reliable envelope machines. We have been making it for many years and it has withstood the test of time. Can be used for making envelopes in one or two passes depending on the configuration of the machine.

Possible Jobs

On standard machine you may produce some following items.

For any further questions don’t hesitate to contact us using the Contact Us page or visit our YouTube channel.

Rialto envelope making machine

Possible Jobs

Envelopes with external flaps
Envelopes with internal flaps

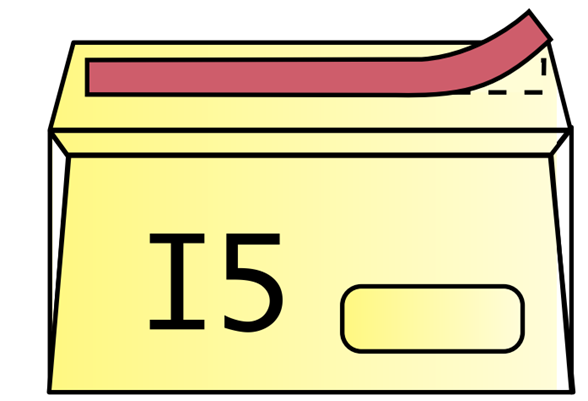

Envelopes with double sided tape application

Specifications of the envelope making machine

  • Open format: 260 x 400 mm
  • Closed format DL: 110 x 220 mm (1/3 A4)
  • Closed format C7/C6: 81 x 162 mm (1/3 A5)
  • Closed format C6: 114 x 162 mm (A6)
  • Closed format C6/C5: 114 x 229 mm (1/3 A4)
  • Closed format C5: 162 x 229 mm (A5)
  • Closed format B6: 125 x 176 mm (C6)
  • Feeder: Top loading rotary drum type feeder
  • Paper weight: 70g to 120g
  • Maximum speed: 73.5 m/min.
