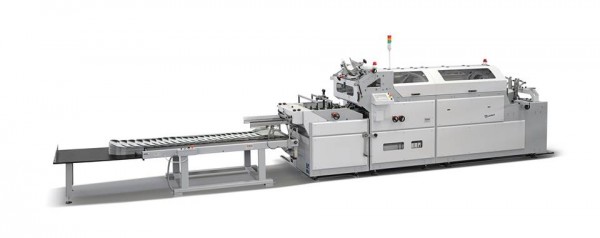

Shopping bag square bottom forming unit | Navona Base

This machine is a special machine to open and form the shopping bag square bottom (patented system®), insert the reinforcing carton, than close the square bottom.

With the Navona Base we can make:

• the opening and forming of the shopping bag square bottom
• the inserting of reinforcing carton and closing of the side flaps

Working process

1. Shopping bag tube feeding
2. Breaking of first front tube flap grain
3. Breaking of second front tube flap grain
4. Opening and forming of the shopping bag square bottom (patented system®)
5. Insertion of the reinforcing carton into the shopping bag tube opened bottom
6. Plough folding of side flaps

Machine composed of

• Tube feeder with directional and launching system of the tube bag
• Square bottom opening and forming station (patented system) with inserter to position the reinforcing carton
• Plough folding unit to close the square bottom side flaps
• Delivery table
